Teletower

Teletower Lift Cable Crank


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Quantity:

550 lbs load capacity
Platform dims: 19 x 72
OSHA Standard: 1926.451 Subpart L for Construction

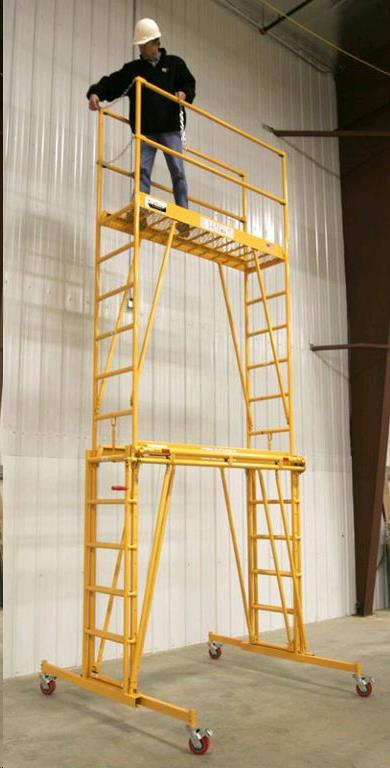

Add the OPTIONAL Extension Model 1177 This optional extension raises the platform an additional 6.5 feet- that's a working height of about 24 feet!
Assembly time is about 10 minutes
Platform can be lowered to 2' and extended to 11' in 6" increments.
Spring-loaded safety lock pins provide safe, positive platform height, and lock-in at 6"intervals

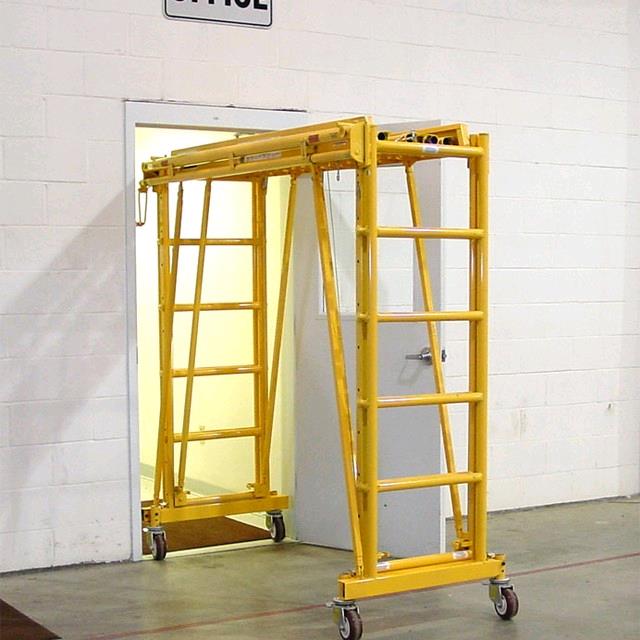

Assembled unit (with safety rails folded) rolls through a 32" x 80" doorway
Entire unit can be quickly assembled by one person, no tools or loose parts.
Assembled unit maintains a 6' walk through clearance for working over and around obstacles
Integral outriggers extend to provide a stable 6' base (1.83: height to base ratio)
5" Heavy Duty dual locking scaffold casters
Portable scaffolding components are easily transported in a station wagon or pickup truck
Complete Unit Consists of:
(2) Telescoping end Sections with outriggers on 5" heavy duty dual locking scaffold casters.
(1) Connecting beam with cable elevating mechanism.
(6) Interchangeable sway braces.
(1) Steel safety deck with 4" toeboard.
(1) Set of 4 safety rails with 4 safety chains

* Please call for pricing and availability.
