Generators

Generator 20 KW Diesel (Towable)

Manufacturer Link: <Click Here>

Where to find Generator 20 KW Diesel  Towable in Greensboro

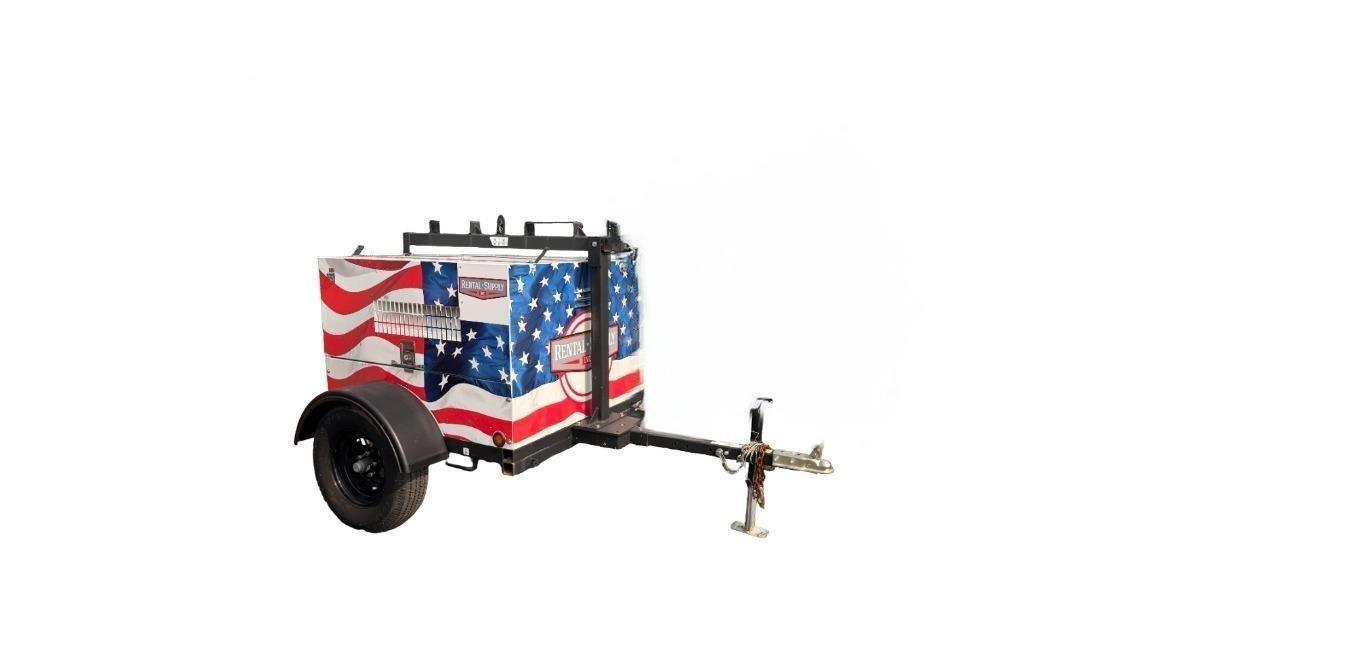

Image for reference only
Actual item may look different
Click on image for larger view

Quantity:

Additional Information

  • ENGINE Isuzu 4LE2TAGV-03- liquid cooled, diesel engine
  • o Standby - 40.2 hp @ 1800 rpm
  • o Prime 36.2 hp @ 1800 rpm
  • o 4 cylinder o 2.2 L displacement
  • o Final Tier 4 Approved Polyethylene fuel tank
  • o 50 gal. (189 L) capacity
  • o 23.8 hr. run time full load
  • o 3.5 in. (89 mm) fill port Fuel consumption (prime) 2.1 gph (7.8 Lph) o 100% - 2.1 gph (7.8 Lph) o 75% - 1.58 gph (5.98 Lph) o 50% - 1.05 gph (3.97 Lph) Marathon Electric
  • o Brushless o 4 pole o Class H insulation SYSTEM OUTPUTS Single phase output
  • o Prime - 19 kW / 19 kVA (79A @ 240V)
  • o Standby - 20 kW / 20 kVA (83A @ 240V) 120/240 VAC 167/83A Voltage regulation
  • Transportation tie downs 7,800 lb. (3538 kg) sSafety chains with spring loaded safety hooks
  • Single wall polyethylene fenders 2 in. (50.8 mm) ball hitch 2200 lb. (998 kg) leaf spring axle 2000 lb. (907 kg) tongue jack with footplate ST205/75R15 - 6 ply 58 in. (1473 mm) track width
  • WEIGHT & DIMENSIONS Dry weight: 1471 lbs. (667 kg) Operating weight: 1761 lbs. (799 kg) 105 x 68 x 56 in. (2.67 x 1.73 x 1.42 m) er Combo hitch 2"ball
